X2O GEN3 12K Winch with Synthetic Rope – 98812

Part #: 98812
Alt PN: SB98812
GTIN: 631410154443

Primary Features

  • Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
  • 3-stage planetary gearbox

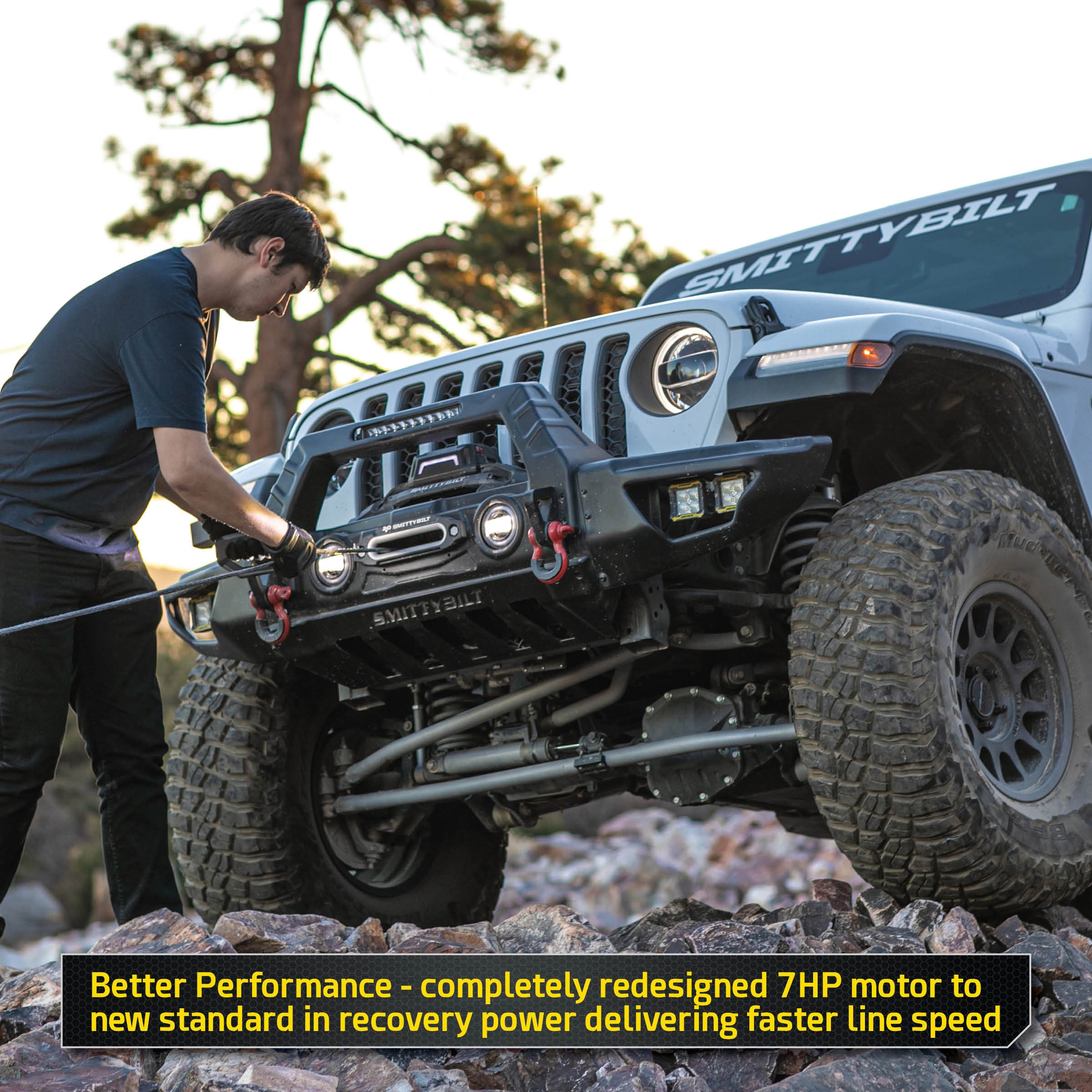

  • 7HP series wound motor

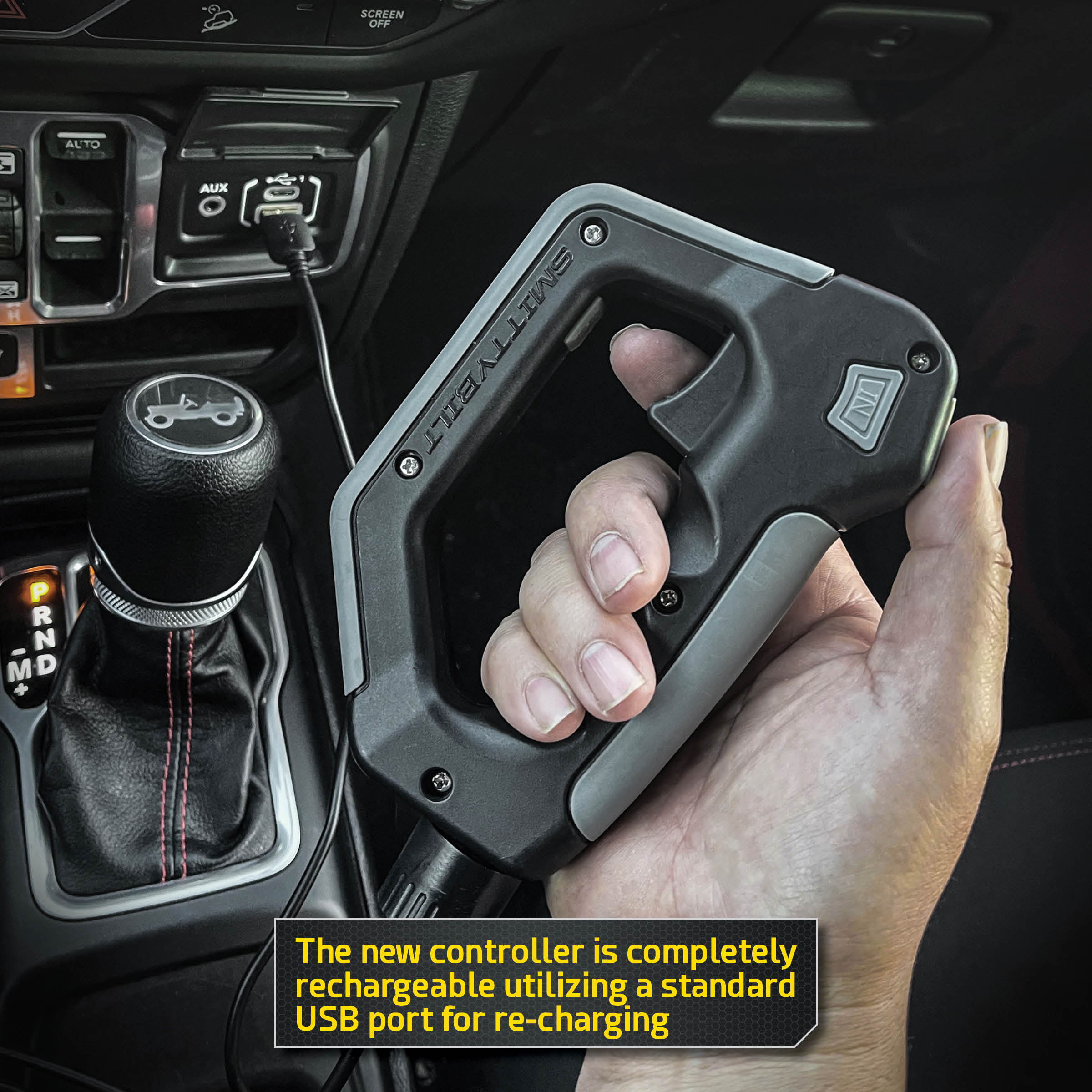

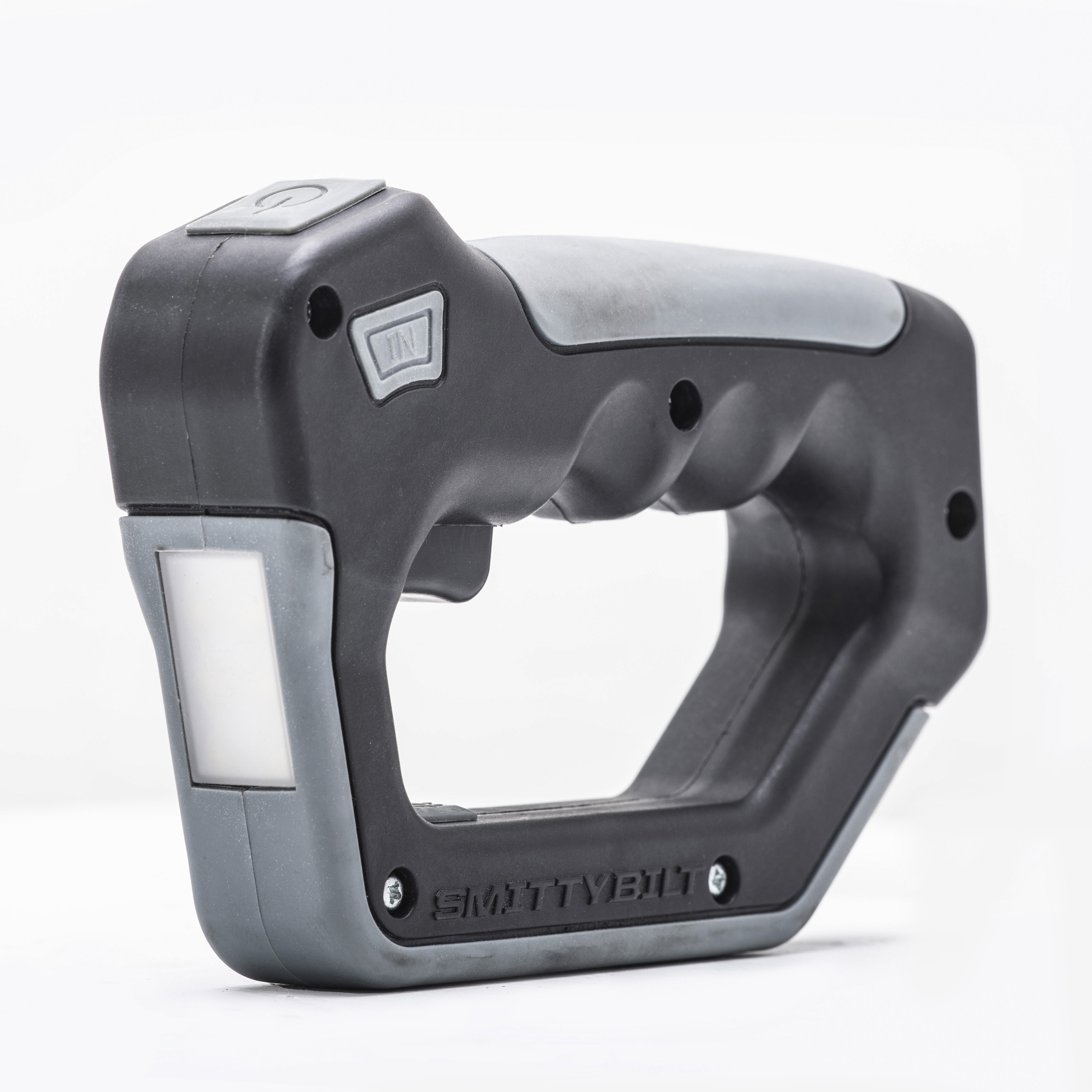

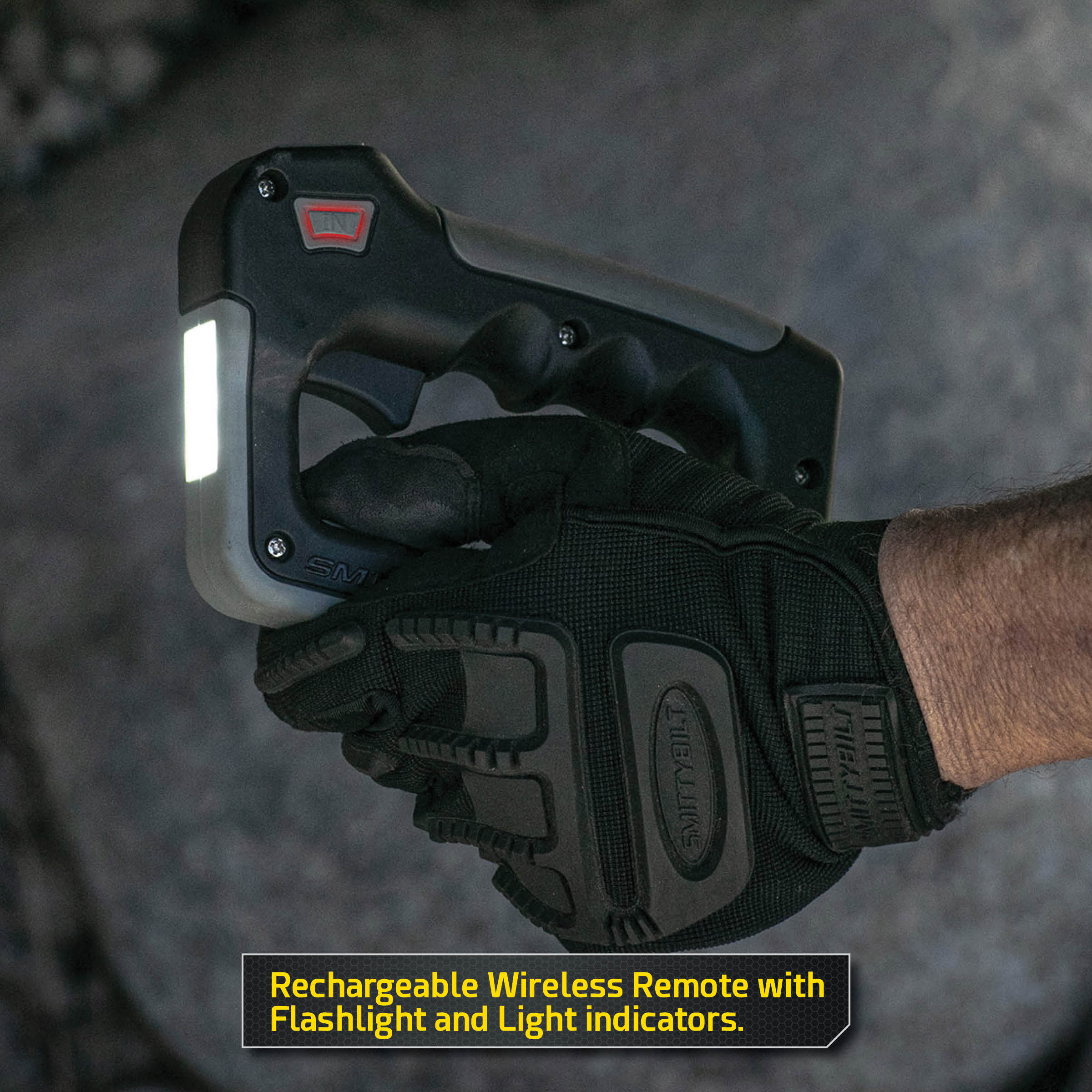

  • Wireless remote with 10' charging/wired cord
  • 5-Year Electrical / Limited Lifetime Mechanical Warranty
  • 5' battery power cables
  • Mounting Bolt Pattern: 10.0" x 4.50"

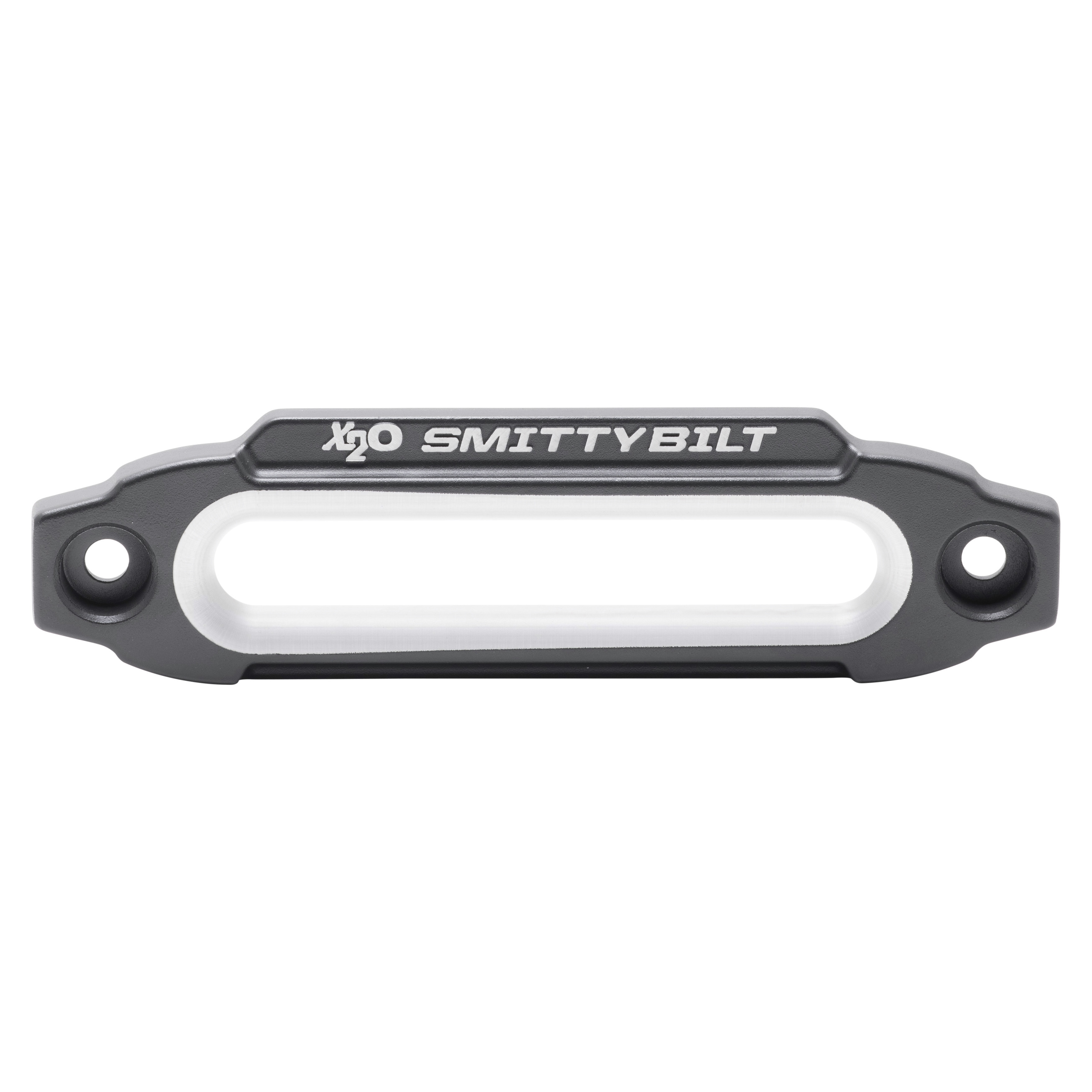

  • Fairlead: Hawse
  • Gear Ratio: 216:1
  • Recommended Battery: 650CCA Minimum for Winching
  • Weight: 76.0Lbs (30.4Kgs)
  • 3/8" x 98.5' synthetic rope

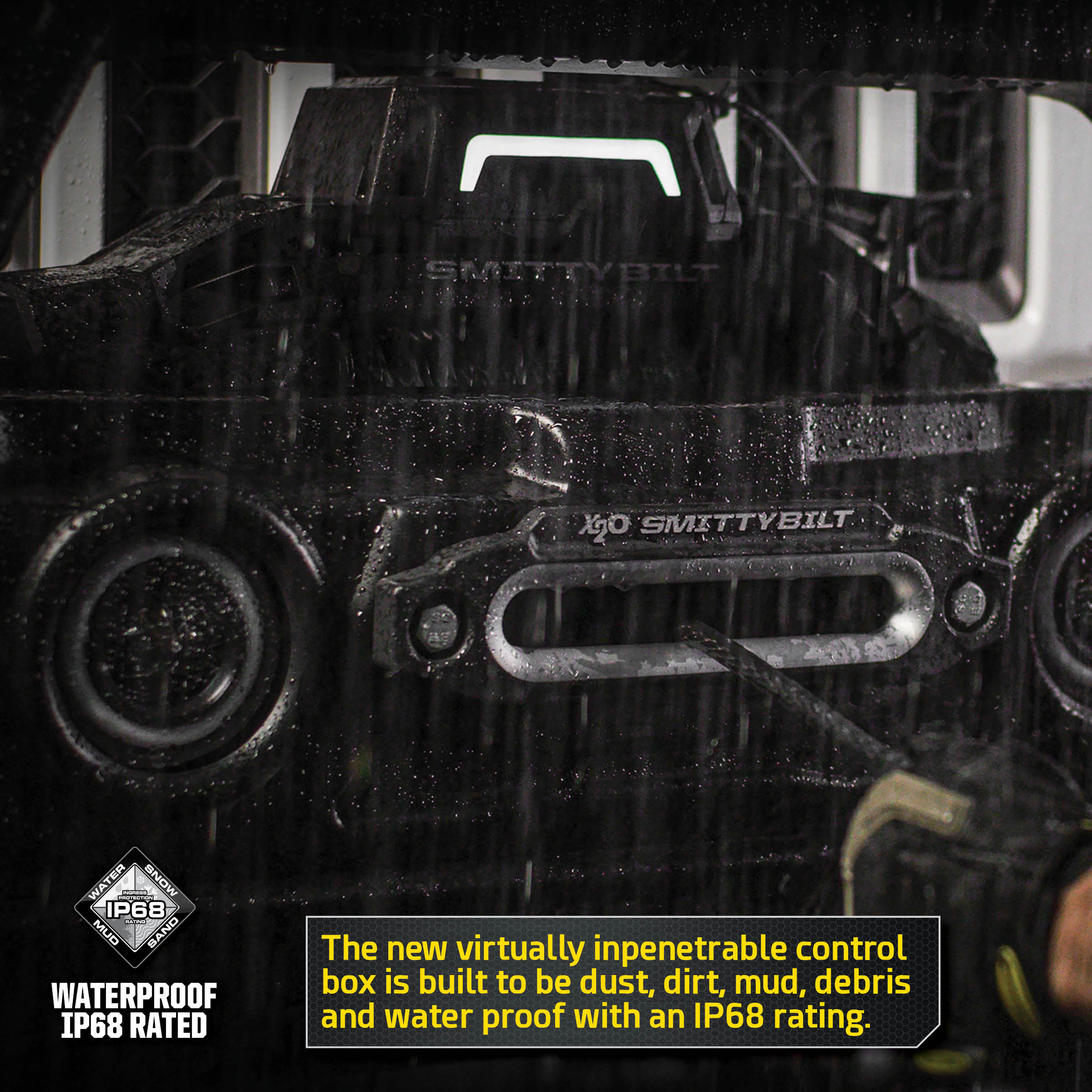

  • Waterproofing: IP68 Rating

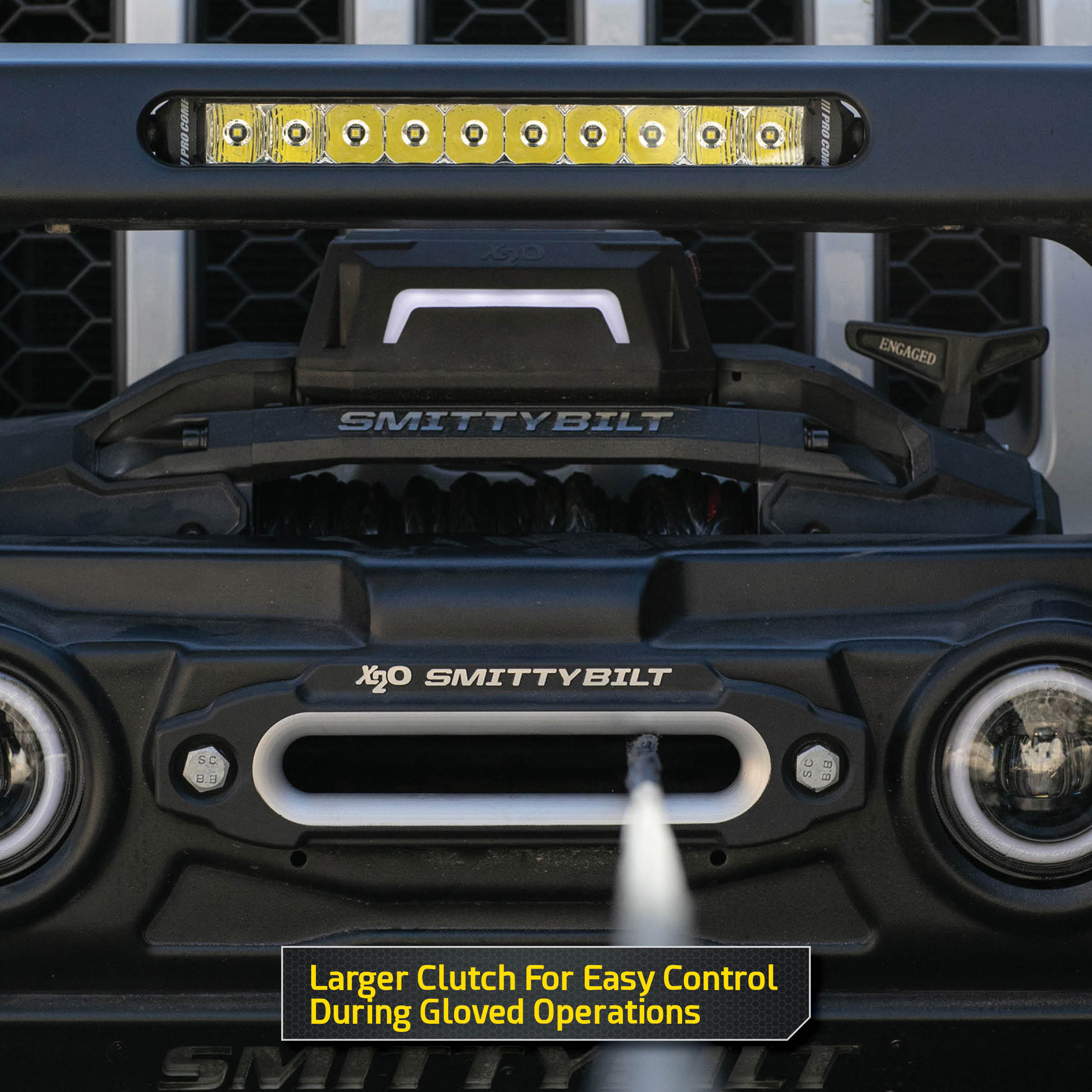

  • Sliding ring gear clutch
  • Brake: Automatic Out-Of-Drum
  • Overall Dimensions: (L x W x H) 22.3" x 5.4" x 9.4"
$999.99

In stock

Description

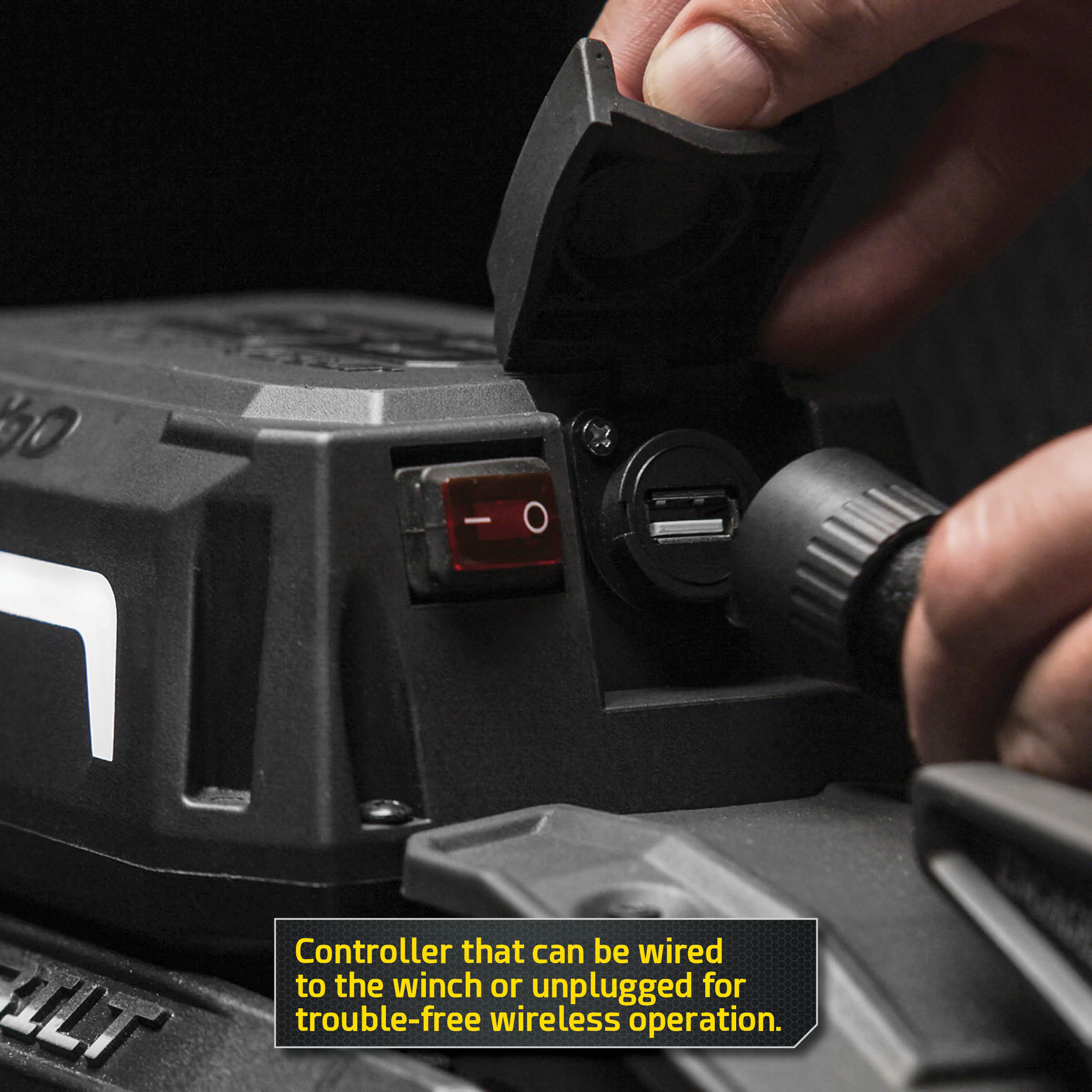

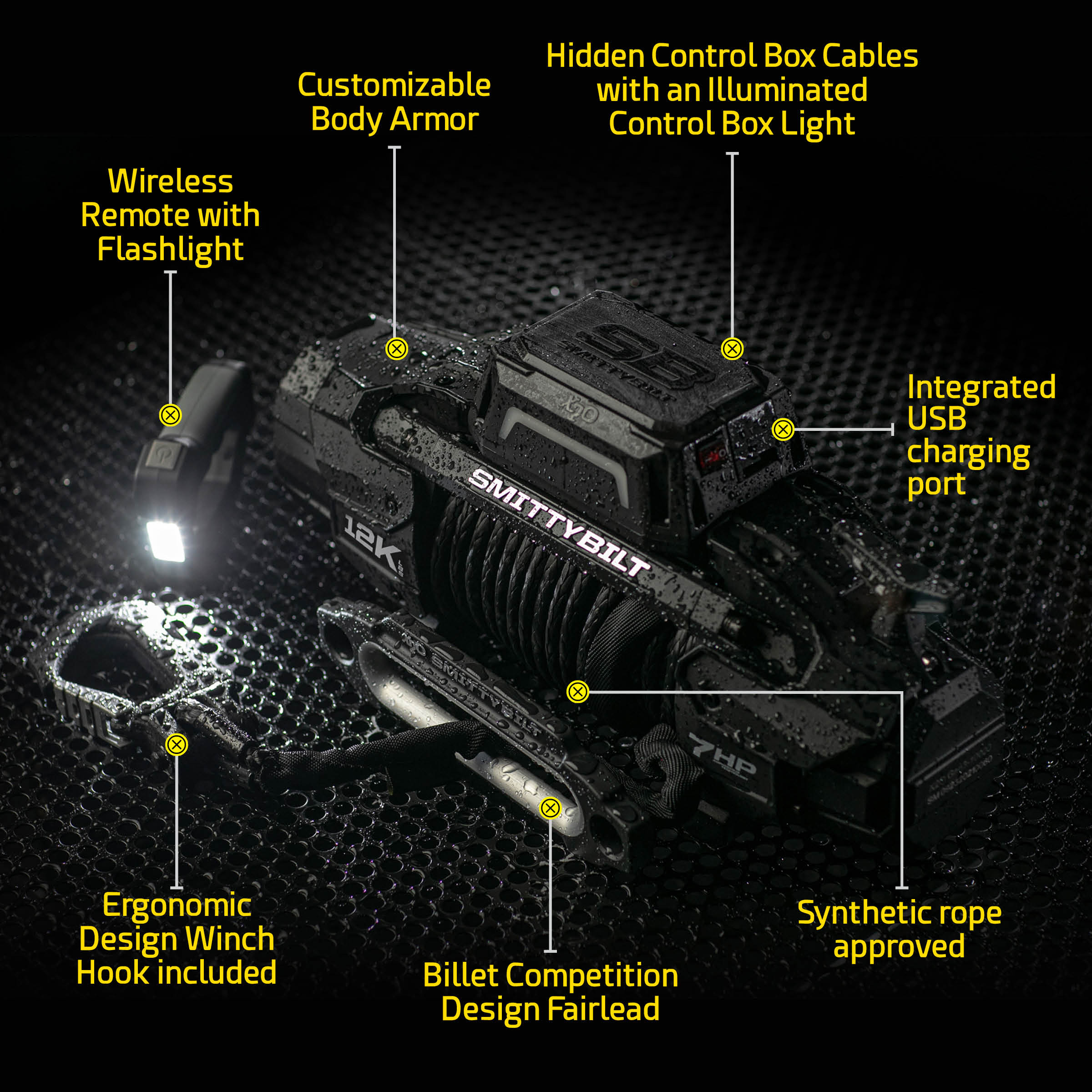

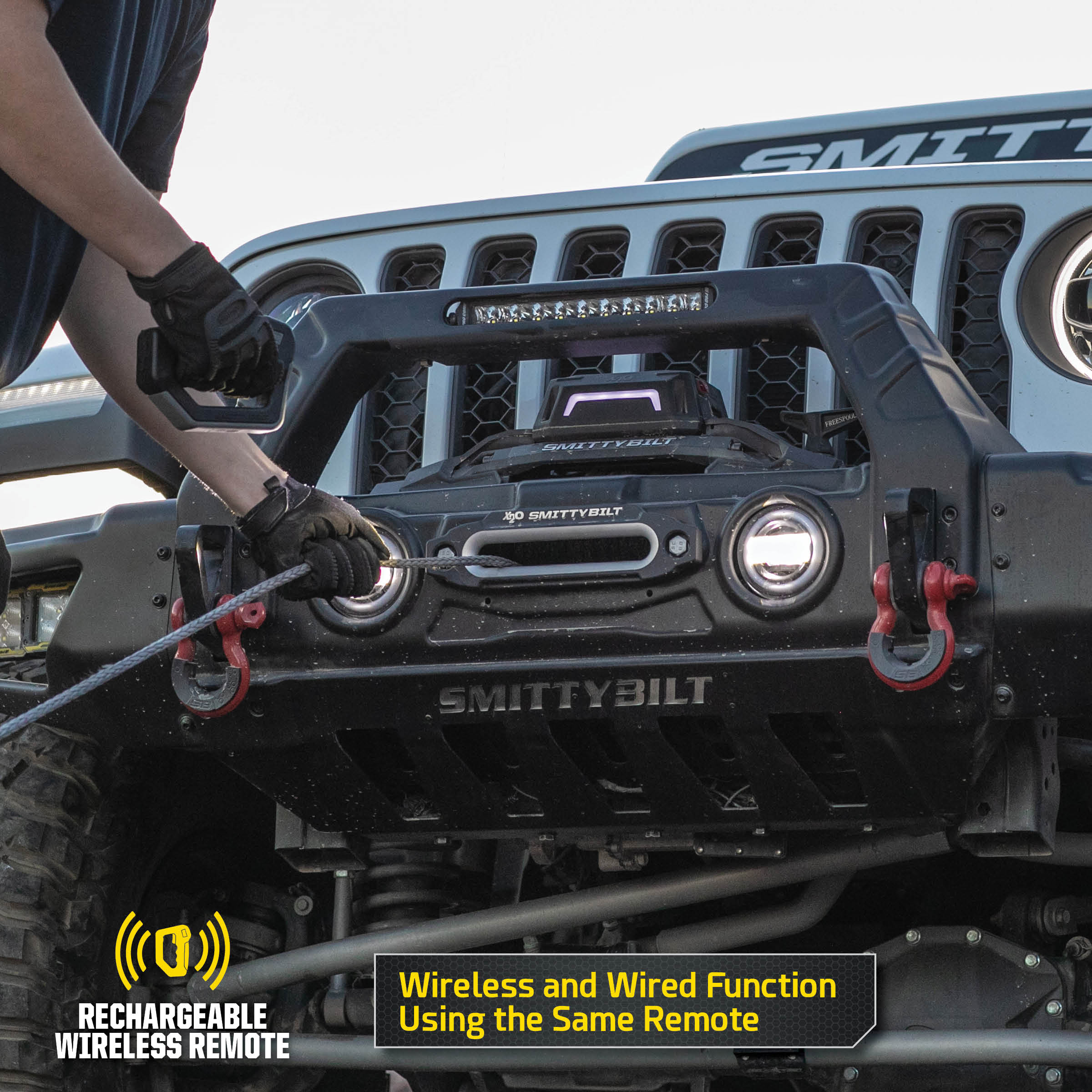

The Smittybilt X2O Gen3 winches are engineered for peak performance and reliable operation, with key enhancements throughout. Powered by a sealed, series-wound 7HP motor and new forged gears, the X2O offers robust durability. Its waterproof 500 AMP control box provides versatile mounting options, while the updated wireless controller with USB connectivity allows both wired and wireless operation. With optimized gear ratios and fast line speeds, the X2O is equipped with a synthetic winch rope to deliver maximum strength and performance.

Installation

Installation Instructions

Warranty

Smittybilt offers extended warranties because we stand behind our products and want our customers to enjoy the freedom of off-roading without the worry and limits of fragile equipment. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!



Read More

Fitment

California Proposition 65

  WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/places.
