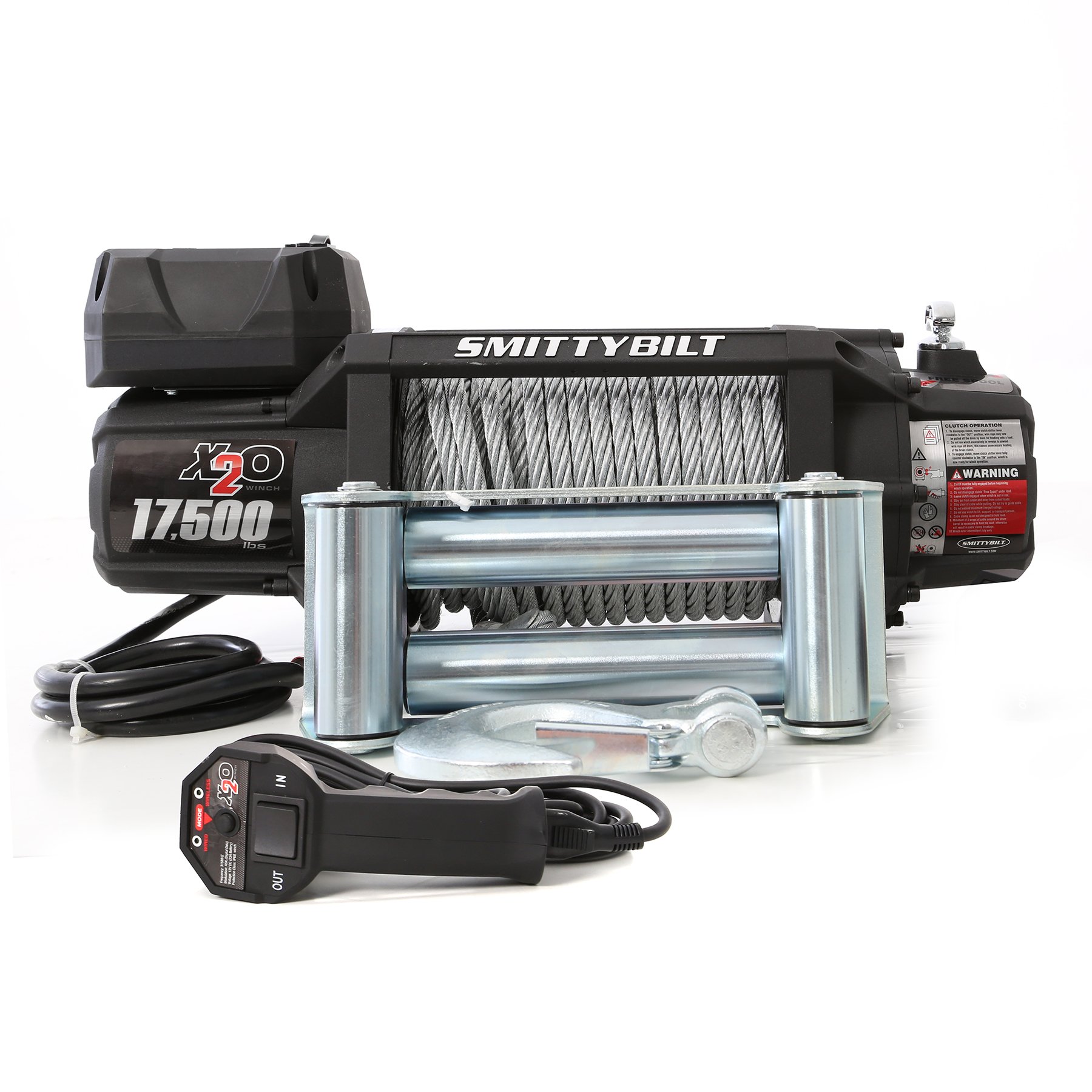

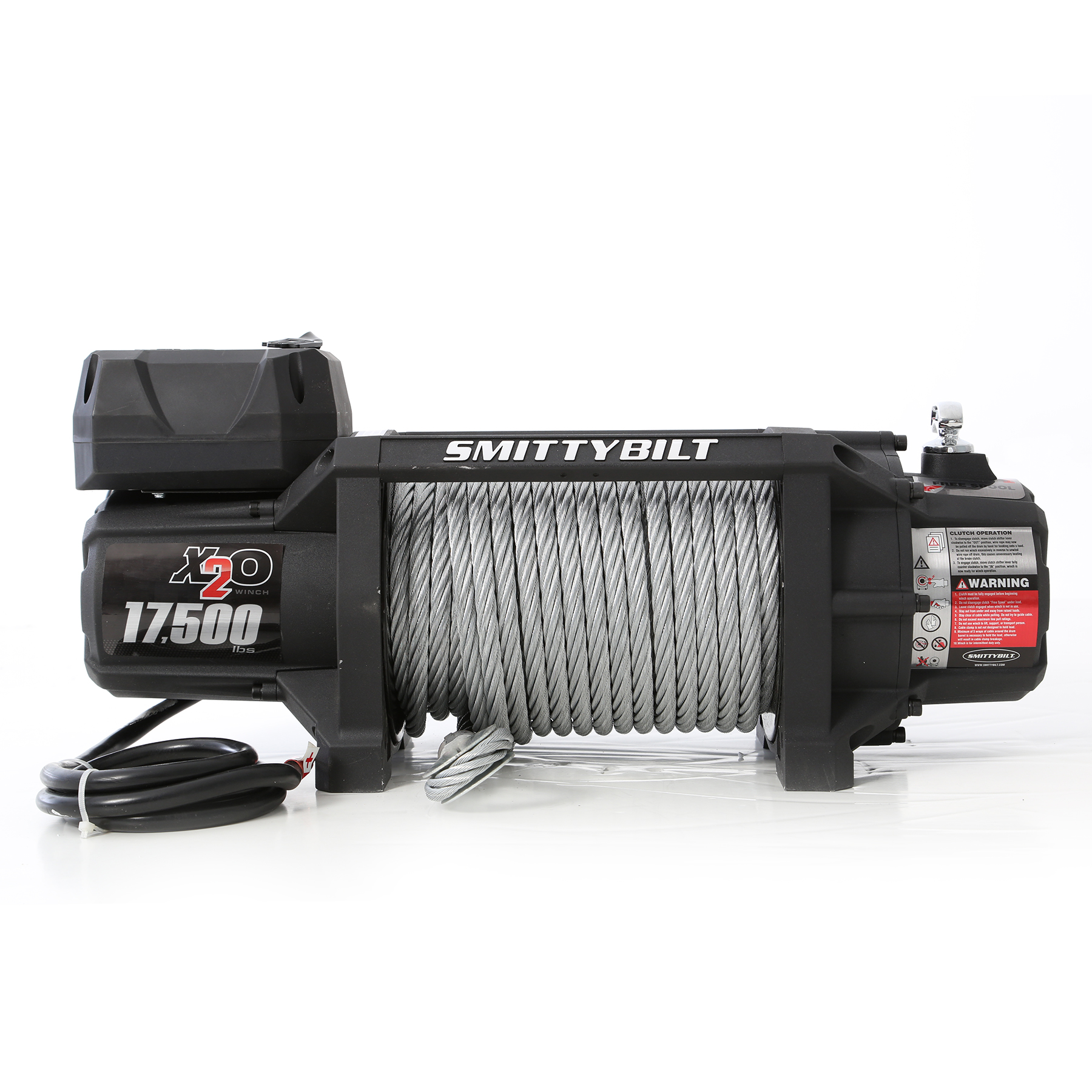

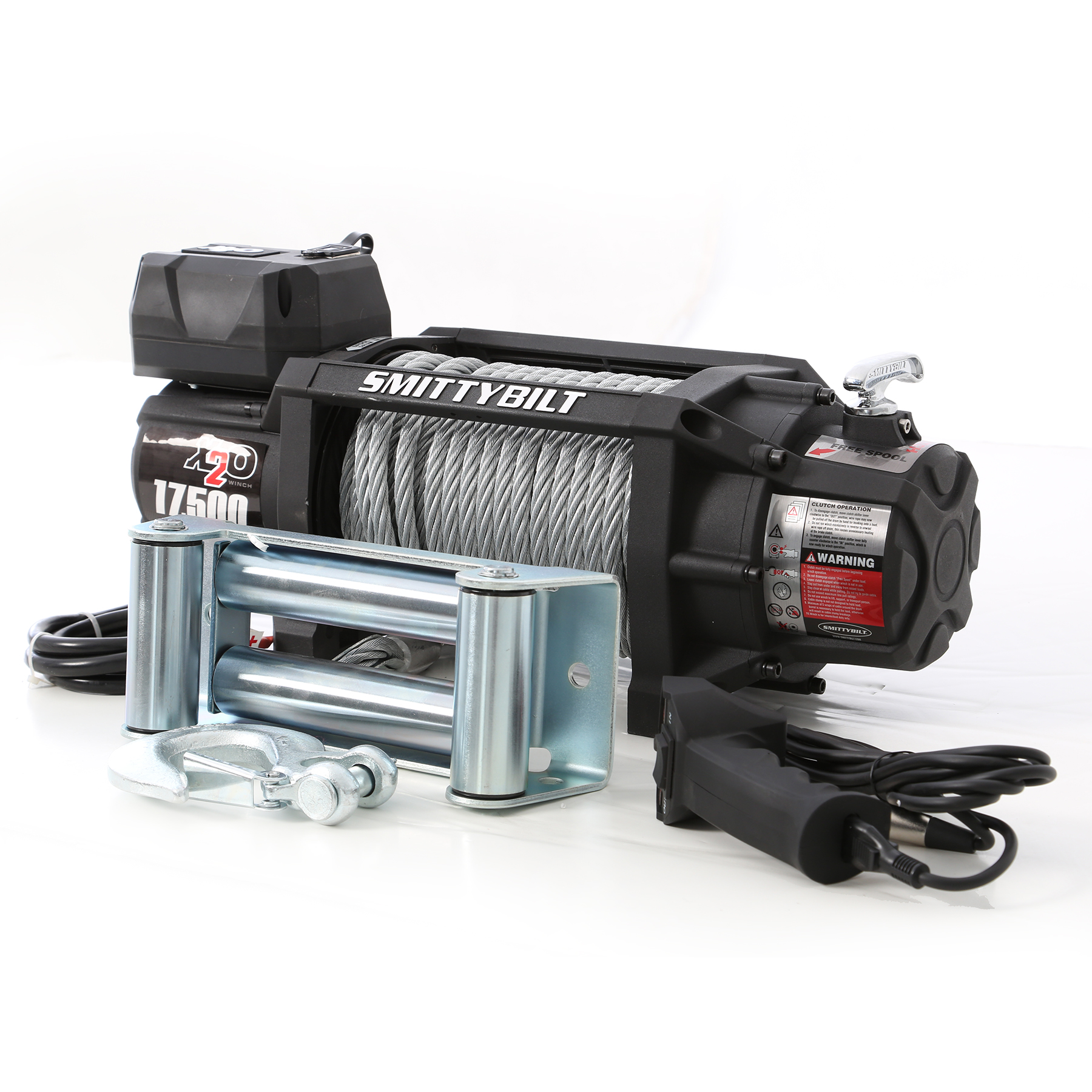

X2O Gen 2 17,500lb Winch w/ Steel Cable

Part #: 97517
Alt PN: SB97517
GTIN: 631410119565

Primary Features

  • Battery Leads: 25mm2, 72”(1.83m)1
  • Finish: Textured Black
  • Gear Ratio: 430:1
  • Motor: 6.6hp Series Wound
  • Mounting Bolt Pattern: 10.0” x 4.50”

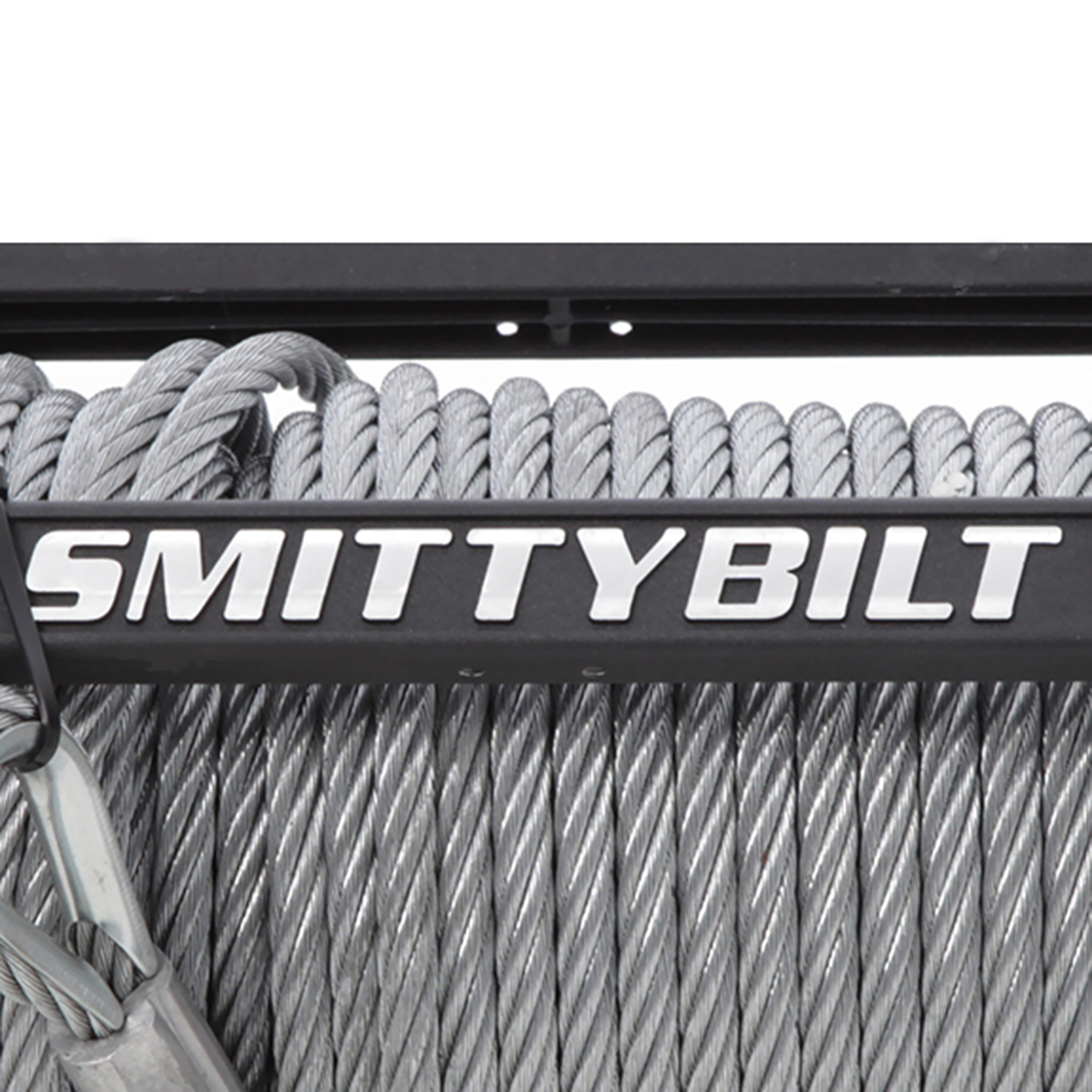

  • Cable: 98.5’ 3/8” Diameter
  • 5-Year Electrical / Limited Lifetime Mechanical Warranty
  • Brake: Automatic Out-Of-Drum
  • Rated Line Pull: 17,500Lbs (7,954kgs) Single Line

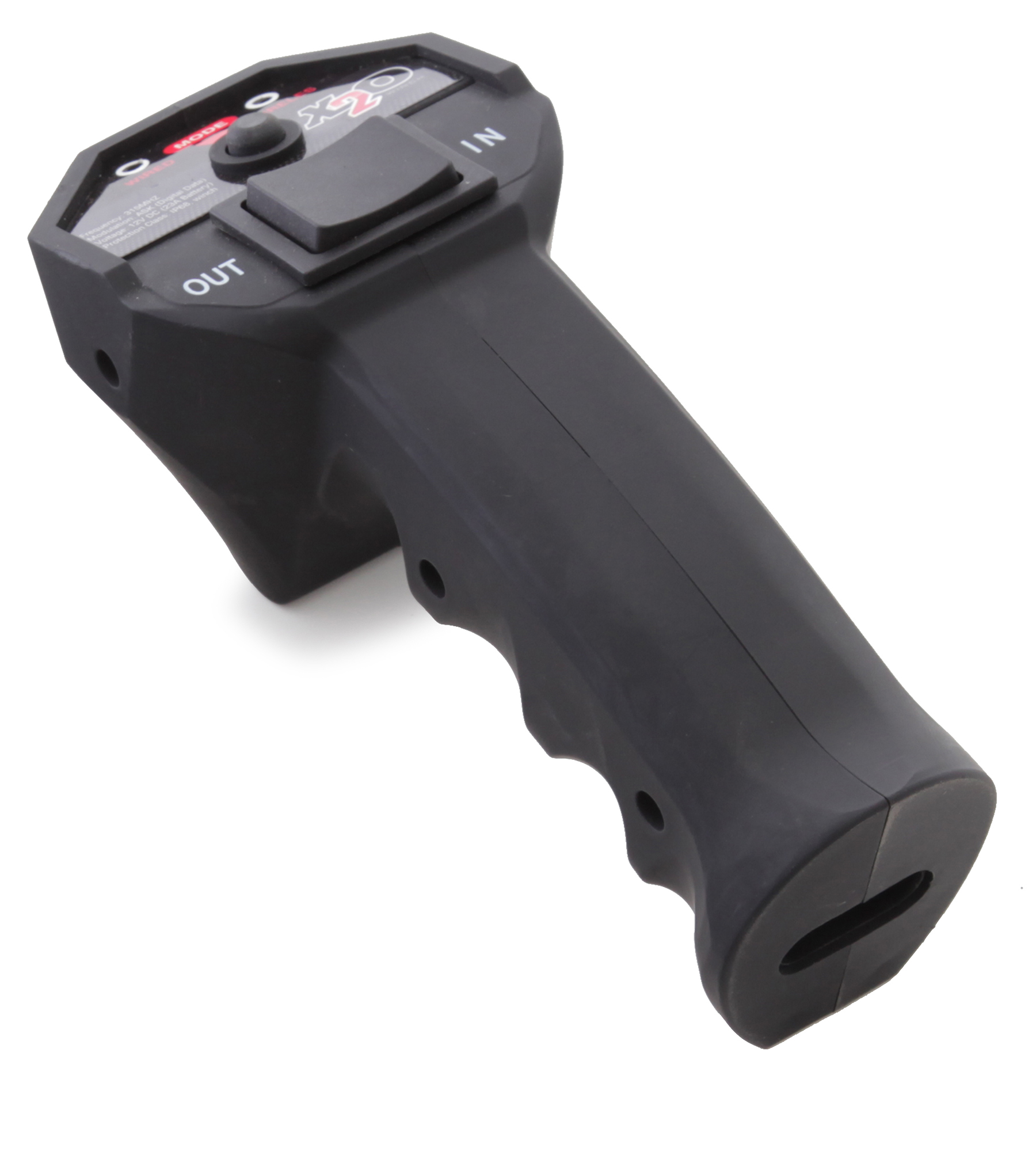

  • Remote Control: Included
  • Recommended Battery: 650CCA Minimum for Winching
  • Control: Remote Switch, 12’ (3.7m) lead
  • Weight: 150.0Lbs (45.0Kgs)
  • Waterproofing: IP68 Rating

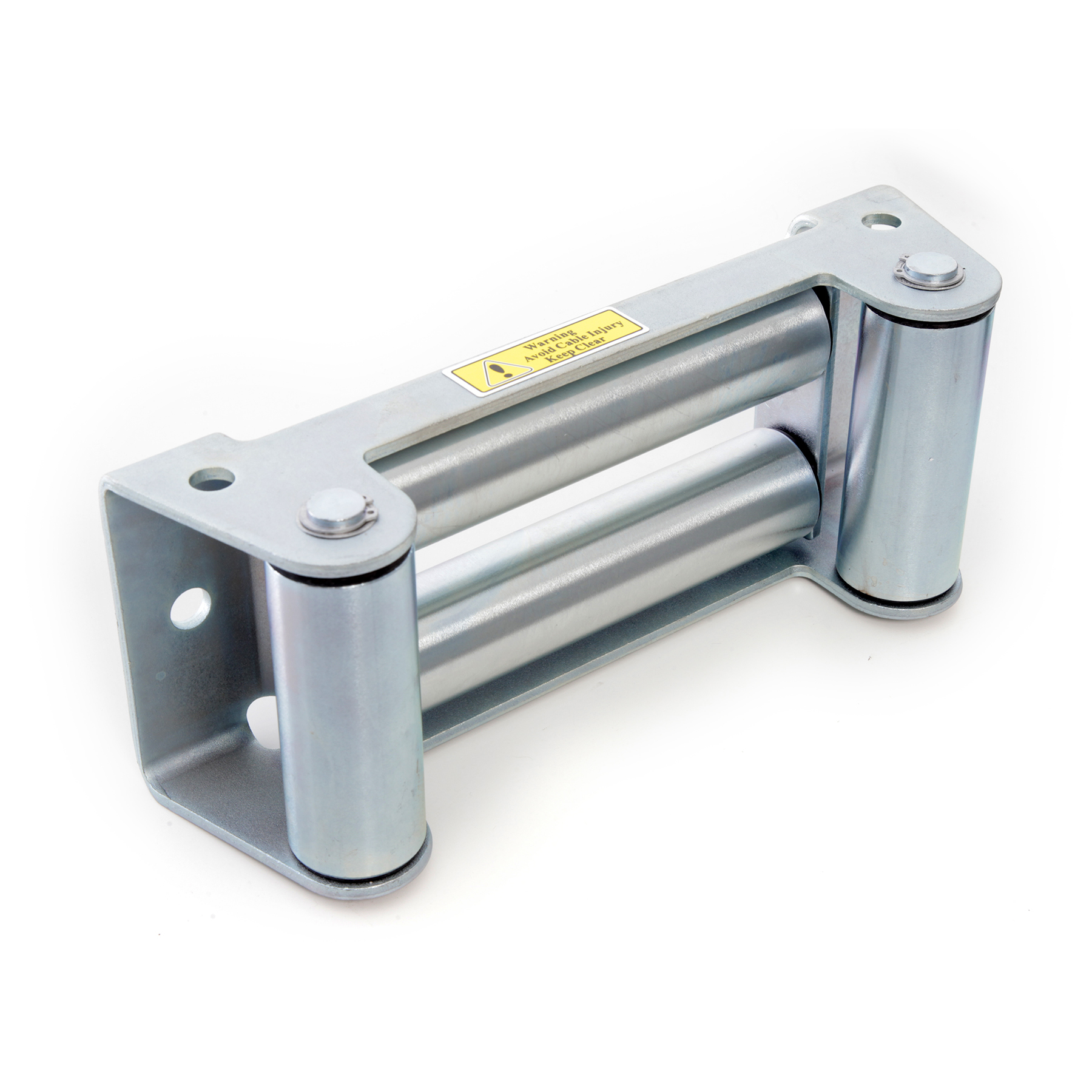

  • Fairlead: 4-Way Roller
  • Drum Size: Diameter 3.45”
  • Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”
  • Clutch: Sliding Ring Gear
  • Gear Train: 3-Stage Planetary
$899.99

In stock

Description

The Smittybilt X2O Gen 2 Winches have been enhanced in almost every area for increased performance and trouble-free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O line features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that are lightning-fast line speeds. If you're looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.

Installation

Installation Instructions

Warranty

Smittybilt offers extended warranties because we stand behind our products and want our customers to enjoy the freedom of off-roading without the worry and limits of fragile equipment. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!
